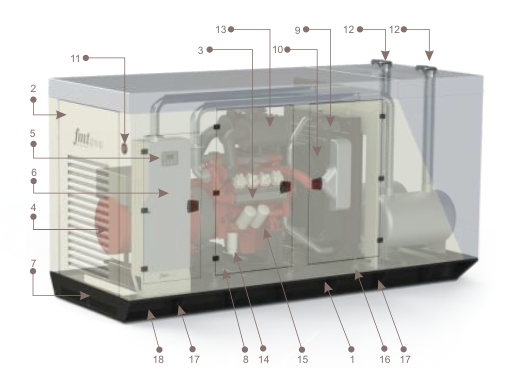

FF110W‑C20296 (150 kVA / 120 kW)
- Stand‑by rating (ESP) 110 kW / 138 kVA
- Prime rating (PRP) 100 kW / 125 kVA
- Water‑cooled FMT diesel engine + WEG alternator
- 0.8 power‑factor • 50 Hz • 415 / 240 V 3‑phase
- Noise level 77 dB(A) @ 1 m
Sydenham Diesel Gensets
Built on the robust FMT REGENERATE‑W platform, our gensets deliver quiet, dependable power for factories, hospitals, and remote sites across East Africa. Every unit is factory‑tested, fitted with AMF/ATS panels, and covered by a two‑year warranty.
RY7‑4L In‑Line 4 Engine
- 4.84 L displacement • Turbo‑intercooler
- Fuel consumption @ 75 % PRP : 17.6 L / h
- Electronic governor • 17.5 : 1 compression
- Cooling capacity 30 L • Oil capacity 17 L

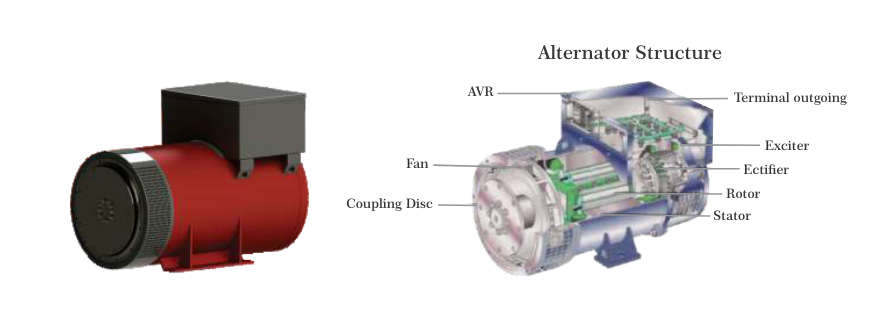

GTA‑251AIHD Alternator
- Brush‑less, self‑excited, AVR‑controlled
- ± 0.5 % voltage regulation
- Insulation class H • IP 23
- Star connection • 0.8 PF • 415 / 240 V
Key Features
- Integrated fuel‑tank base‑frame – ~11 h autonomy at 75 % load, anti‑vibration mounts, forklift pockets.
- Smart AMF / ATS panels – DEIF 420 or DSE 6120 controllers with true‑RMS load metering, Modbus RS‑485, remote start/stop, deep‑sleep battery saver.
- Low‑noise canopy – galvanized steel, double‑swing doors, high‑density acoustic foam; 77 dB(A) at 1 m.
- Green‑hybrid ready – optional AGC 150 Hybrid controller for PV + genset synchronization and CO₂ reduction.
- Five‑step quality test – insulation, load, transient, noise, and safety verified before dispatch.

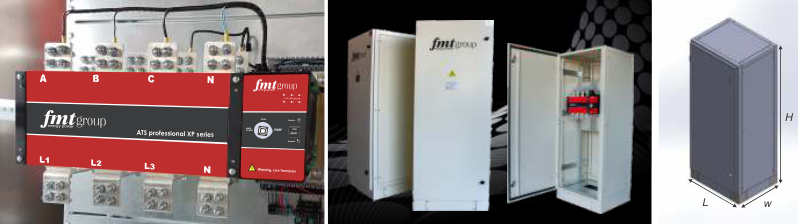

About ATS Systems
An ATS is a device that interfaces with a generator and the electrical system. It monitors the utility power and signals the generator to start if the utility power goes out of specifications or drops out entirely. Backup power is now fed to the main utility panel or an emergency panel via the ATS. ATS units are sized based on the power requirements of the connected devices and the type of power sources involved. Some ATS units include monitoring features, allowing users to track power status, load levels, and other relevant data. All FMT Group generators have the ATS system.
